The INT-R1900M is a compact bi-directional optical node, the ideal platform for delivering upstream and downstream DOCSIS, voice, video and high speed data service over FTTB or FTTX applications

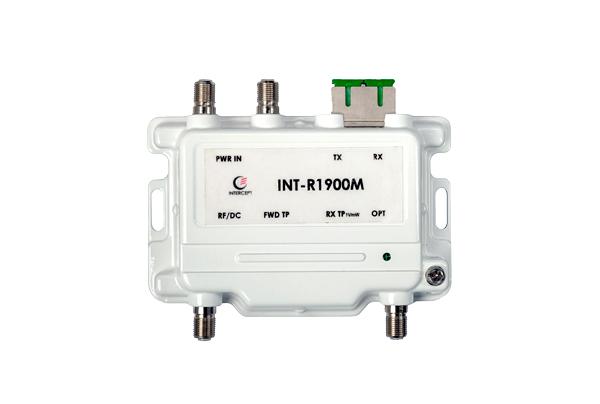

INT-R1900M – compact bi-directional optical node
Key features:
- xPON Pass Through
- Supports DOCSIS 3.0 or 3.1
- Burst Mode Operation – Laser type; Burst mode DFB
- Optical automatic gain control (AGC), -6 to +2 dBm
- Input optical wavelength: 1550 nm
- Output wavelength: 1610 nm or CWDM
- Downstream bandwidth: 54 MHz to 1250 MHz
- Upstream bandwidth: 5 MHz to 42 MHz
- Output RF signal level, 18 dBmV/Ch (typ.) @ 870 MHz
- Input RF signal level, 20 to 40 dBmV/Ch
- RF test point, -20 dB
- Supply power, 12 voltage DC
- Power-on, Optional I/P, Optical Tx LED indicators
- Optional UPS available
- Follow SCTE 174 Standard
